Radio frequency heat sealing equipment from Cosmos and Kabar.

Author: cosmoskabar
COSMOS/ KABAR

Cosmos and Kabar - The world's leading manufacturers of radio frequency heat sealing equipment, have been in business for over 50 years. We offer a wide range of options from standard machinery to fully automatic systems including shuttles, turntables, in-line indexers, robotic feeders (material and board), stripping, cutting, stacking stations, etc. In addition, we have a large tool and die manufacturing facility capable of creating customized sealing dies for a complete in-house "turnkey" operation.


Our fully staffed engineering department combines many years of experience with "Computer Aided Design" technology. Together with our manufacturing staff, they will work to provide cost effective equipment to meet your production requirements. Our Sales and Service Departments stand committed to the support of our customers now and in the future.
Allow our sales and engineering staff to review your next radio frequency (RF) project, and offer state-of-the-art solutions for your requirements.


Applications: Protective Clothing · Sneaker and Shoe Components · Stationery Items · Gel and Foam Filled Devices · Stadium Cushions · Medical Products · Inflatables · Toys · Doll Cases · Pouches · Juvenile Products · Clam Shell Packaging · Toilet Seats · Tag holders · Protective Covers · Military Covers · Bladders · Bellows · Inflatable Life Preservers and many more

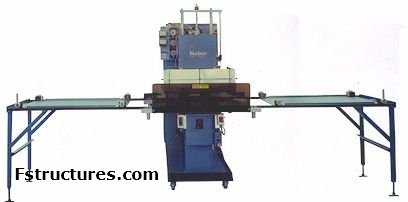

Since 1945 our 6,10, and 15kw RF welders have been used to manufacture hundreds of products. We offer a variety of standard features and options to increase productivity.


6kw Power Requirements: 200 - 280 vac 60 cycles 3 phase 40 amps per phase



Generator Features: Frequency stabilized, modular control box, plate and grid meters, three plug-in timers, self test arquench with sensitivity control, and production counter, air filters, dual blower cooling system.

Press Features: Safety shields, quick die disconnect, heavy duty tubular steel press construction, adjustable speed control valves, air filter water trap with regulator and automatic lubricator, air silencers, adjustable stop for stroke adjustment, caster mounted.

Optional Accessories:

  • Heated upper platen
  • RF shielding
  • Manual and automatic shuttles
  1. Automatic 4 and 6 position turntables with 72", 84",96", 108" or 120" diameter disks
  • Special operating voltages and cycles

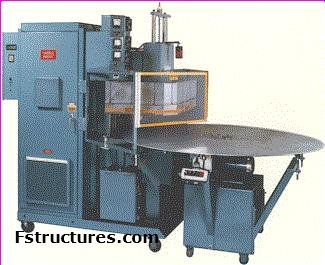

10kw R.F. Sealing Machine with 84" Diameter 4 position Turntable


10kw Power Requirements: 200-280 vac 60 cycles 3 phase 45 amps per phase

Generator Features: Frequency stabilized modular control box, plate and grid meters, three plug-in timers, self test arquench with sensitivity control, and production counter, air filters, dual blower cooling system.

Press Features: Full R.F. and safety shielding, quick die disconnect, heavy duty tubular steel press construction, adjustable speed control valves, air filter water trap with regulator and automatic lubricator, air silencers, adjustable stop for stroke adjustment, caster mounted.

Optional Accessories:

  • Heated upper platen
  • Manual and automatic shuttles
  • Automatic 4 and 6 position turntables with 72", 84",96", 108" or 120" diameter disks
  • Automatic power control
  • PLC controller with operator interface
  • Special operating voltages and cycles
  • Robotics
  • Automatic board feeders
  • Automated material feeders

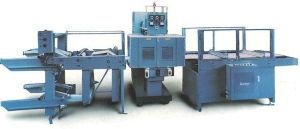

15kw R.F. Sealing Machine with Automatic Indexer and Unwind Stand


15kw Power Requirements: 200-280 vac 60 cycles 3 phase 75 amps per phase

Generator Features:Frequency stabilized modular control box, plate and grid meters, three plug-in timers, self test arquench with sensitivity control, and production counter, air filters, dual blower cooling system.

Press Features: Full R.F. and safety shielding, quick die disconnect, heavy duty tubular steel press construction, adjustable speed control valves, air filter water trap with regulator and automatic lubricator, air silencers, adjustable stop for stroke adjustment, caster mounted.

Optional Accessories:

  • Heated upper platen
  • Manual and automatic shuttles
  • Automatic 4 and 6 position turntables with 72", 84",96", 108" or 120" diameter disks
  • Automatic power control
  • PLC controller with operator interface
  • Special operating voltages and cycles
  • Multiple power control options
  • Automatic modular indexers
  • Robotics
  • Automated board feeders
  • Automated material feeders
  • NOTE: If more power is required, we offer 20, 25, 35, and 50kw generators.
For more information please visit www.cosmos-kabar.com
